"Reducing interior car temperatures by up to 20°C and protecting paintwork from UV damage."
The gold standard for residential villas. A single-sided support structure that provides full coverage without poles obstructing your parking maneuverability.

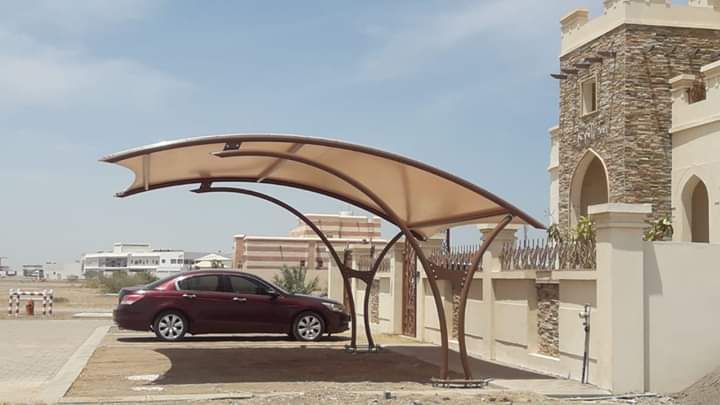

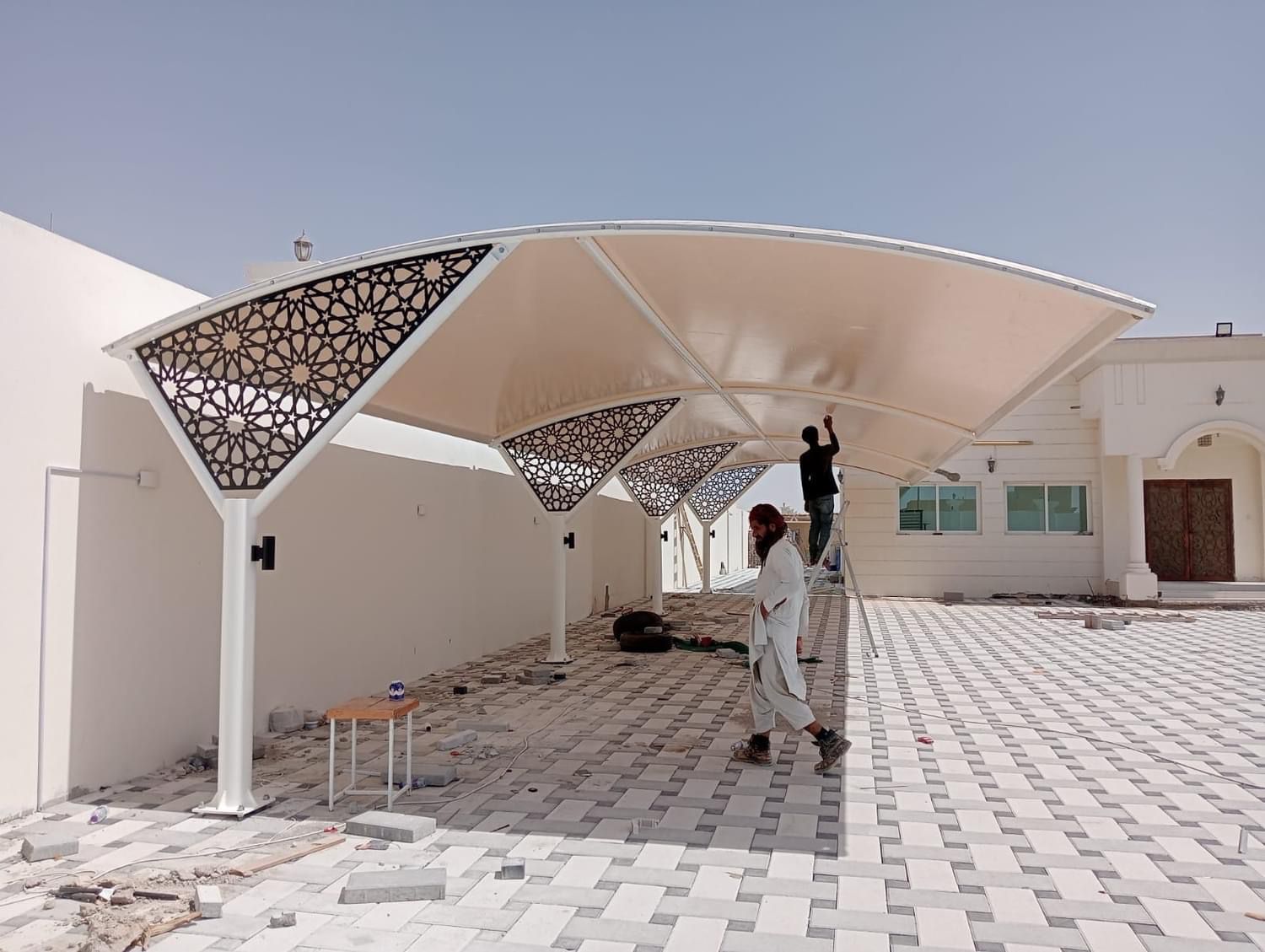

Ideal for double parking slots or commercial lots. A robust steel arch framework supporting high-tension HDPE net fabric for maximum durability.
Aesthetic tensioned sail shades tailored for irregular spaces. Perfect for modern villas requiring a lighter, architectural look with superior airflow.
10Yr
Material Warranty
On HDPE Fabric
We use high-density polyethylene mesh fabric (320 GSM). It allows heat to escape upwards while blocking 98% of harmful UV rays, preventing heat traps.
Structural integrity is paramount. Our posts and beams are hot-dip galvanized and powder-coated to prevent rust and corrosion in the humid coastal climate.
For waterproof requirements, we offer PVDF-coated PVC membranes (700-900 GSM) that are 100% waterproof and self-cleaning.
| Feature | HDPE (Commercial Mesh) | PVC (PVDF Coated) |
|---|---|---|
| Fabric Weight | 320 - 340 GSM | 700 - 900 GSM |
| UV Block | 95% - 98% | 100% (Complete Blockout) |
| Water Resistance | Permeable (Allows Airflow) | 100% Waterproof |
| Temp Reduction | -10°C to -15°C | -5°C to -10°C |
| Fire Rating | NFPA 701 (Fire Retardant) | B1 / M2 (Self Extinguishing) |
| Lifespan | 10-15 Years | 15-20 Years |
| Warranty | 10 Years | 15 Years |
Assessment of ground stability (interlock/concrete) and measurement of parking area dimensions.
Select your fabric color (Desert Sand, Beige, Blue, etc.) and approve the structural drawings.
Heavy-duty steel posts are fabricated, galvanized, and powder-coated off-site to ensure quality.
Concrete foundations are poured, posts erected, and fabric tensioned to perfection.
Dubai Investment Park
150 Bays / Arch Design / PVC Fabric
Jumeirah Golf Estates
Triple Bay / Wall Mounted / Desert Sand HDPE
Abu Dhabi British School
High Arch / Multi-Color / Safety Post Covers
Al Barsha Mall
Sail Shades / Custom LED Lighting
Dubai Marina
Downtown Dubai
Palm Jumeirah
Abu Dhabi Corniche
Yas Island
Arabian Ranches
The Springs
Ras Al Khaimah
To ensure your shade fabric retains its 10-year warranty and aesthetic appeal, we recommend a simple maintenance routine. Our structures are low-maintenance by design, but the desert dust requires occasional attention.
HDPE (Mesh) allows air to circulate, keeping the area beneath cooler by preventing hot air traps, but it is not 100% waterproof. PVC is a solid membrane that is 100% waterproof but holds more heat. We recommend HDPE for most car parking applications in the UAE.
For standard residential car shades within your boundary wall, approvals are generally simple. For commercial projects or structures outside boundary lines, approvals are mandatory. We assist with the engineering drawings required for submission.
Once the design is approved, fabrication typically takes 5-7 days. On-site installation for a standard 2-car cantilever shade usually takes 1-2 days (foundation curing may require additional time).
Yes. Our structures are engineered to withstand wind speeds of up to 140 km/h. The steel posts are concreted into the ground, and the knitted fabric allows some wind to pass through, reducing the wind load on the structure.
